What is this?

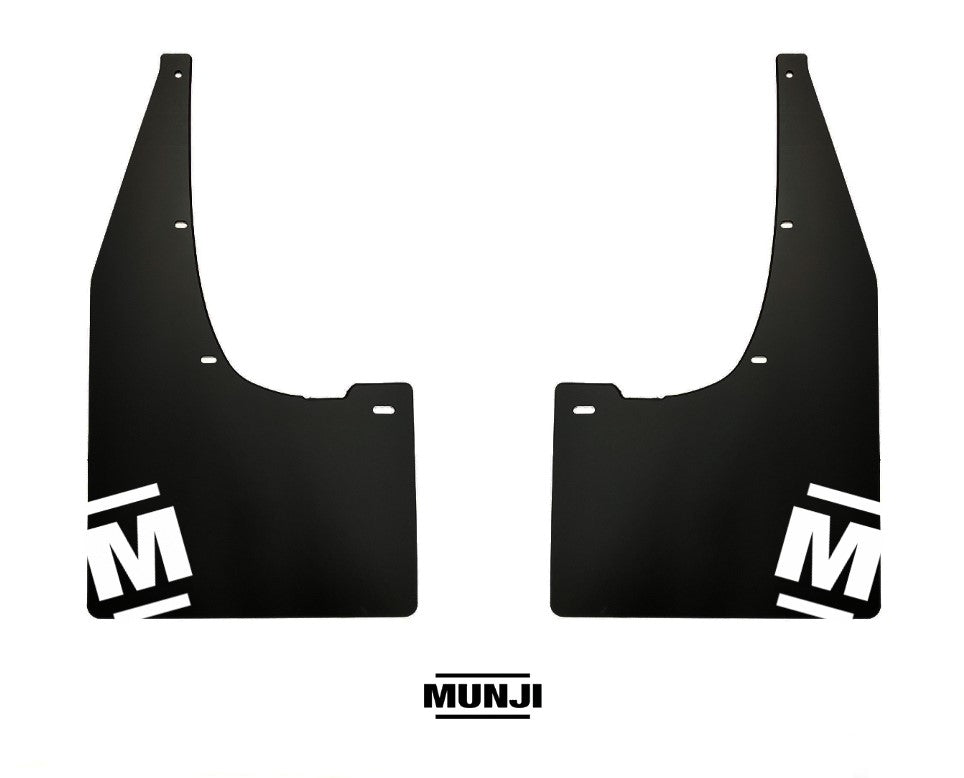

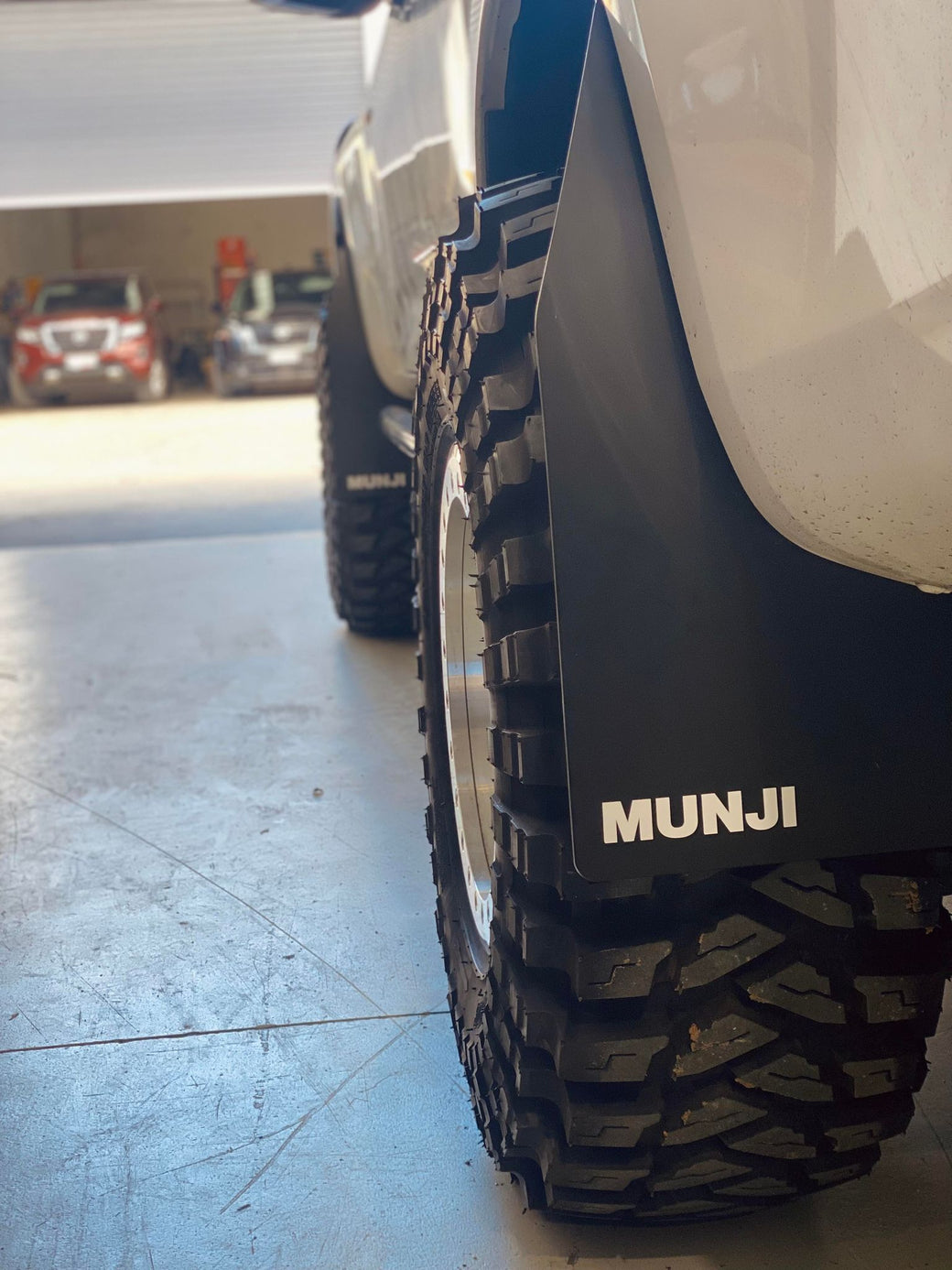

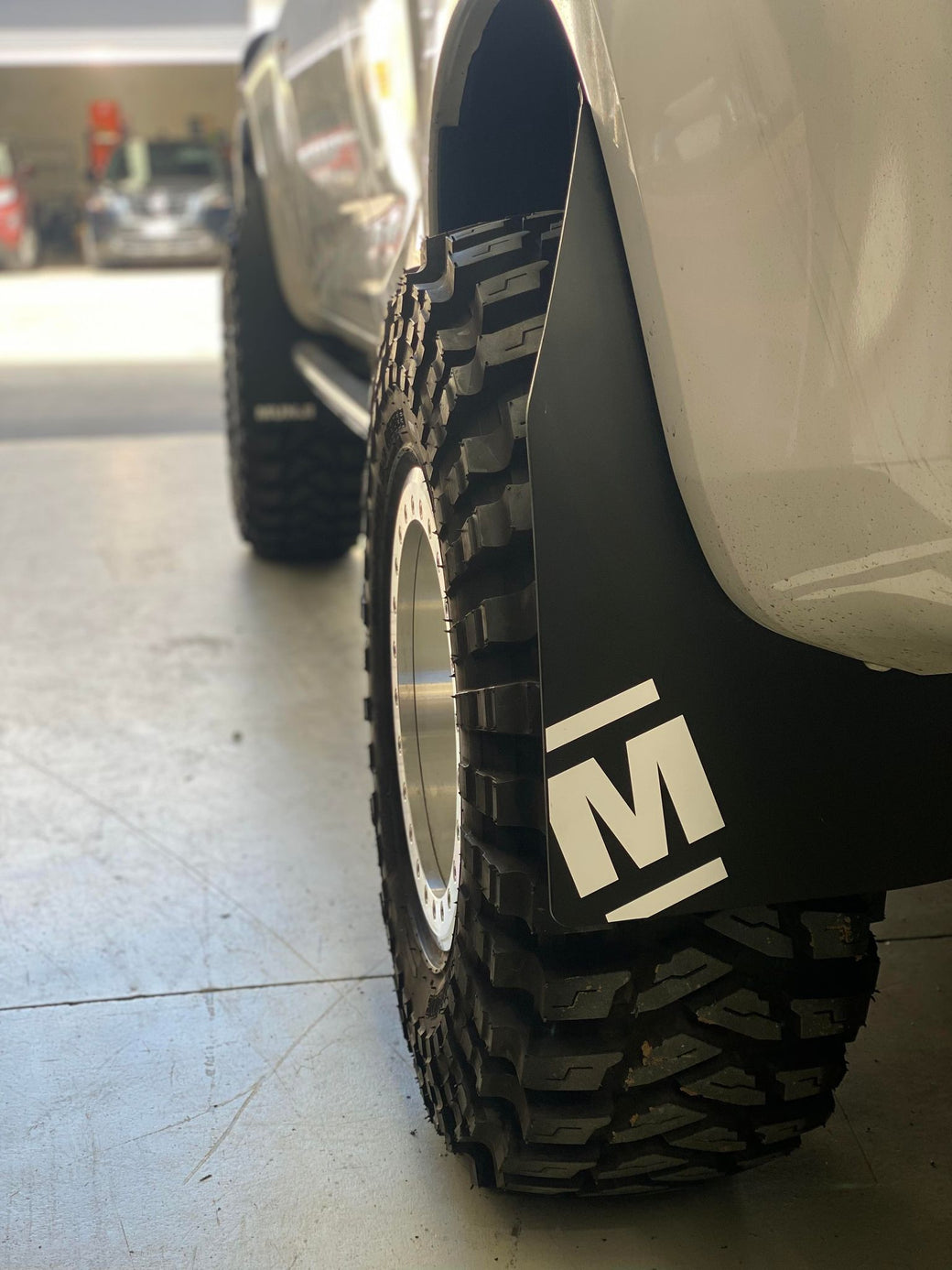

A pair of Munji Extended Mudflaps to replace the original rubber mudflaps that are located within the rear wheel arch, as seen on the Munji Rig. These Mudflaps are much lower profile then the original rubber mudflaps, giving more tyre clearance in the wheel arch, and the extended width will help cover the tyre poke when fitting bigger offsets. They fit using the original mudflap holes, and can be fitted using the original mudflap bolts, however Countersunk M6 bolts and rivnuts are provided and are the recommended mounting method as they sit flush with the mudflap, giving more tyre clearance. Our testing showed they would work with the X-Terrain and SP Models that have factory 'flares'.

Construction

• Mud Flaps are CNC'd out of High-density Polyethylene (HDPE).
• Black in colour to suit the "Original Look".
• This a UV stable material and will not deteriorate in the sun.
• HDPE is a thermoplastic, which means if for some reason it is out of shape you can simply leave the part out in the sun on a hot day and it will be easy to flatten out again.

What are the benefits?

These Mudflaps are much lower profile then the original rubber mudflaps, giving more tyre clearance in the wheel arch, and the extended width will help cover the tyre poke when fitting bigger offsets. In case of a big impact directly onto the mudflap, the countersunk bolts are designed to pull through the mounting holes on the mudflap, to try save the tub panel from damage.

Options Available

Width

Three different widths are available for purchase:-

1. 25mm Extension - Edge of Mudflap will poke ~25mm past the guard (Suits tyres that have sidewall poke only)

2. 50mm Extension - Edge of Mudflap will poke ~50mm past the guard (Suits 0 offset + 285s)

3. BIG BOY 75mm Extension - Edge of Mudflap will poke ~75mm past the guard (as seen on the Munji Rig)

Logo Style

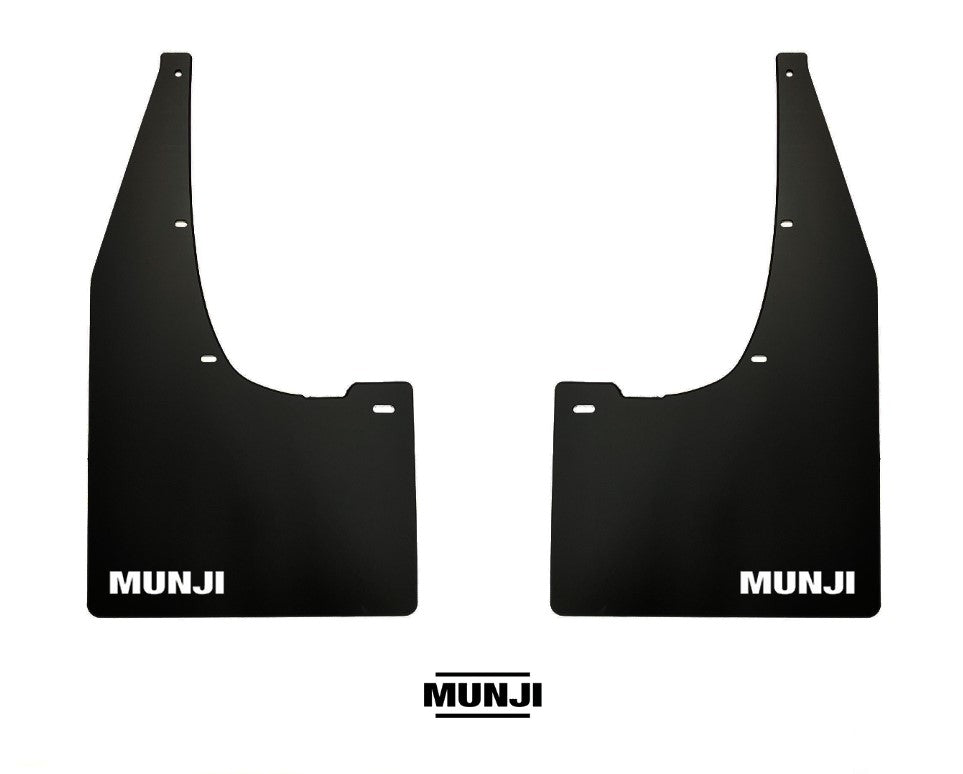

1. Standard Munji Logo Sticker

2. Slanted Munji Logo Sticker

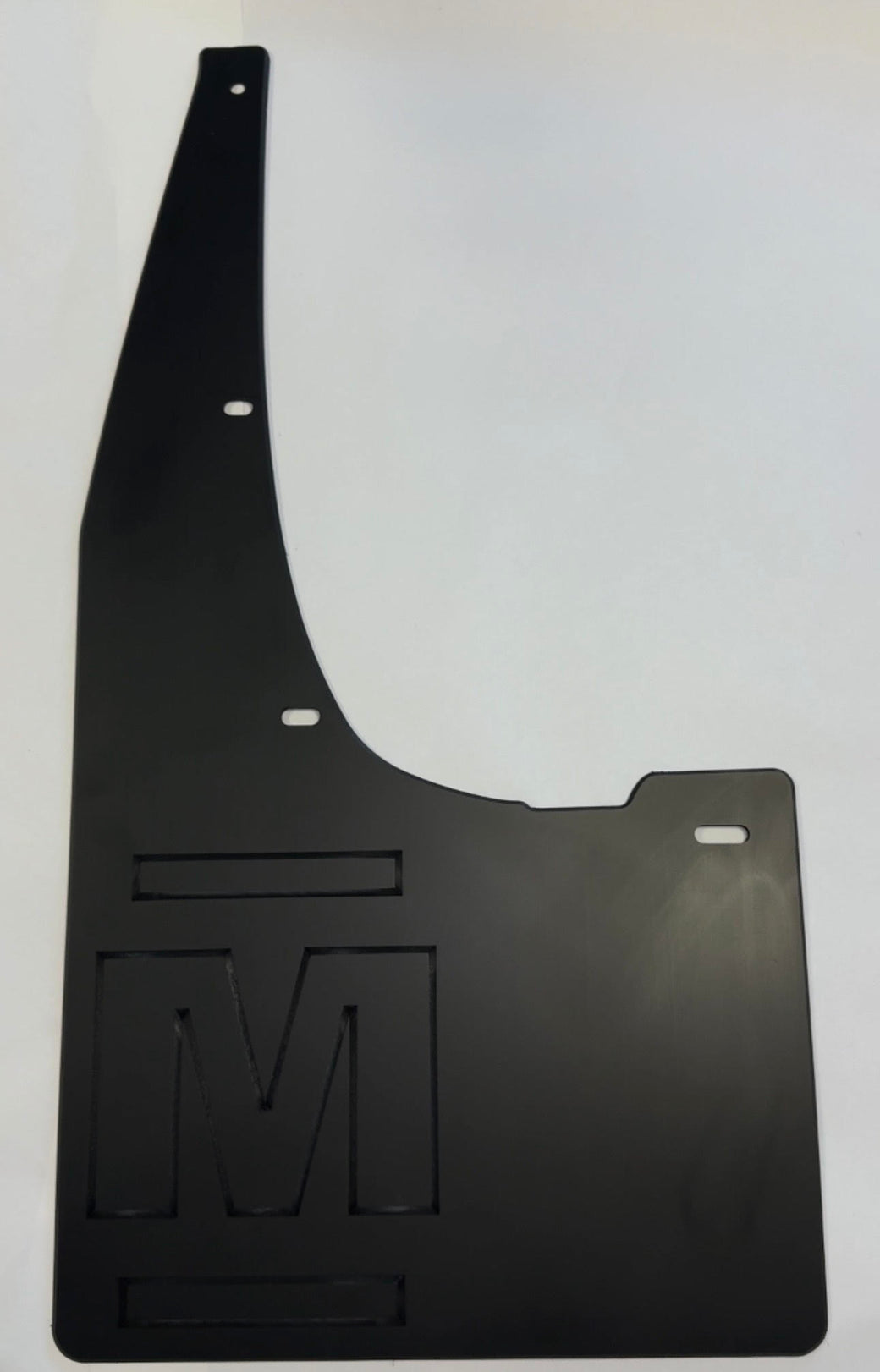

3. Laser Etched Munji Logo

GVM Length Requirements

For GVM upgrade certification, you will require longer than standard. Please opt for these selections in the drop down menu. These are made 100mm longer than standard size.

Hardware

The Inner Guards come with Countersunk Bolts and Rivnuts (please note this is the recommended mounting system, however, you will require a Rivnut crimper)

What vehicles does this suit?

Mazda BT-50 2020 onwards - 4JJ3 motor

Installation

Tools required – Allan key / Drill

Optional tools required (depending on hardware selected) – Rivnut Crimper for rivnut hardware option

Installation Time - Approximately 30 minutes for initial install of Rivnuts

Difficulty –Do it yourself, basic tool knowledge required

Postage

Due to increased shipping costs and size, mud guards, inner guards, and shackles are not included in the free standard shipping offer.

N.B. Mudflaps are unable to be sent via express post due to size.
