What is this?

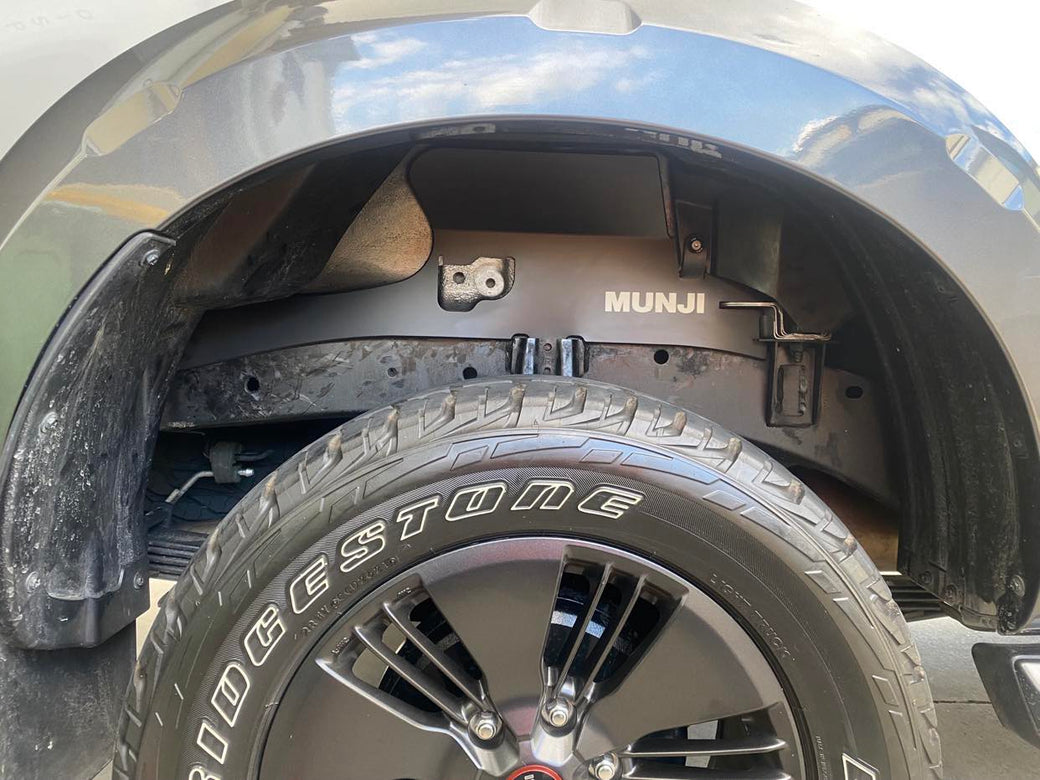

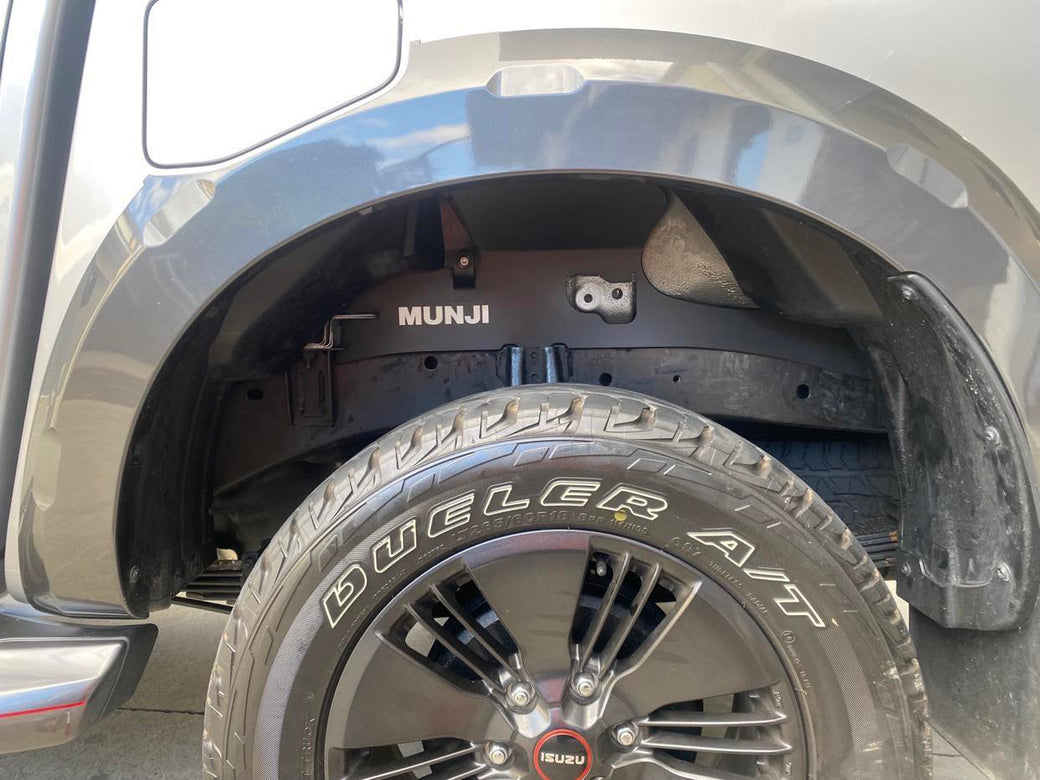

Munji Reinforced Inner Guards to cover up the gap between tub and chassis from the factory, which is widened by a 1" / 2" body lift.

It makes the body lift more discrete and provides a neater overall appearance of the tub lift.

Construction

• Inner Guards are now CNC'd out of High-density Polyethylene (HDPE).
• Black in colour to suit the "Original Look".
• This a UV stable material and will not deteriorate in the sun.
• HDPE is a thermoplastic, which means if for some reason it is out of shape you can simply leave the part out in the sun on a hot day and it will be easy to flatten out again.

What are the benefits?

The replacement Inner Guards provide protection from debris to your engine components.

Options Available

Heights

Three (3) different heights are available for purchase:-

1. Standard height (no body lift) (This applies for suspension lifts as well)

2. 1” Body Lift

3. 2” Body Lift

Hardware

The Inner Guards come with your chosen hardware, either:-

A. Bolts, anodized washers and Rivnuts (please note this is the recommended mounting system, however, you will require a Rivnut crimper) - $154.00 plus postage.

B. Bolts, anodized washers and Rubber Thread Inserts - $165.00 plus postage.

What vehicles does this suit?

Isuzu D-Max 2020/2021 - 4JJ3 motor

Installation

Tools required – Allan key / Drill

Optional tools required (depending on hardware selected) – Rivnut Crimper for rivnut hardware option

Installation Time - Approximately 30 minutes for initial install of Rivnuts

Difficulty –Do it yourself, basic tool knowledge required

Postage

Flat rate postage applies.

N.B. Inner Guards are unable to be sent via express post due to size.
